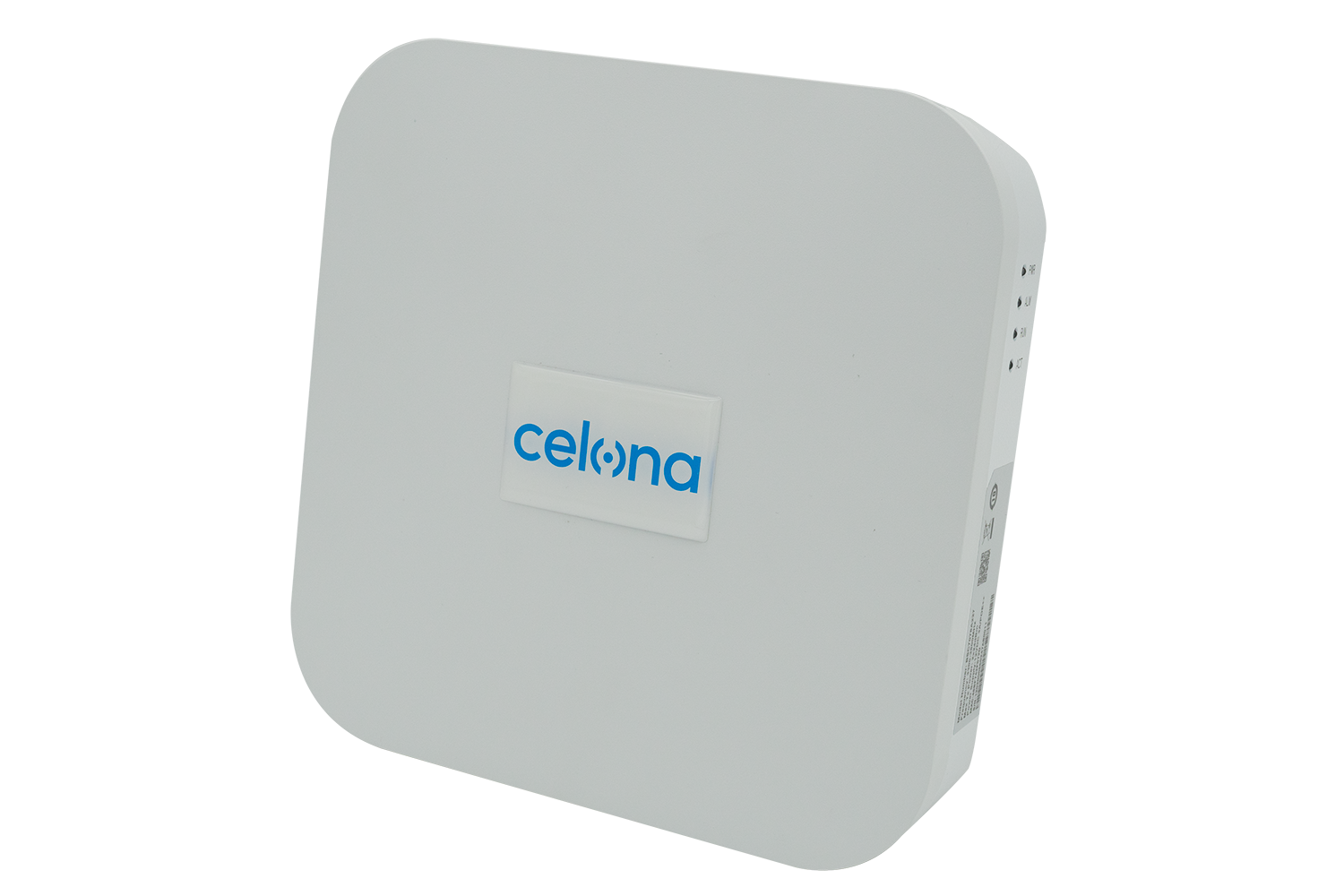

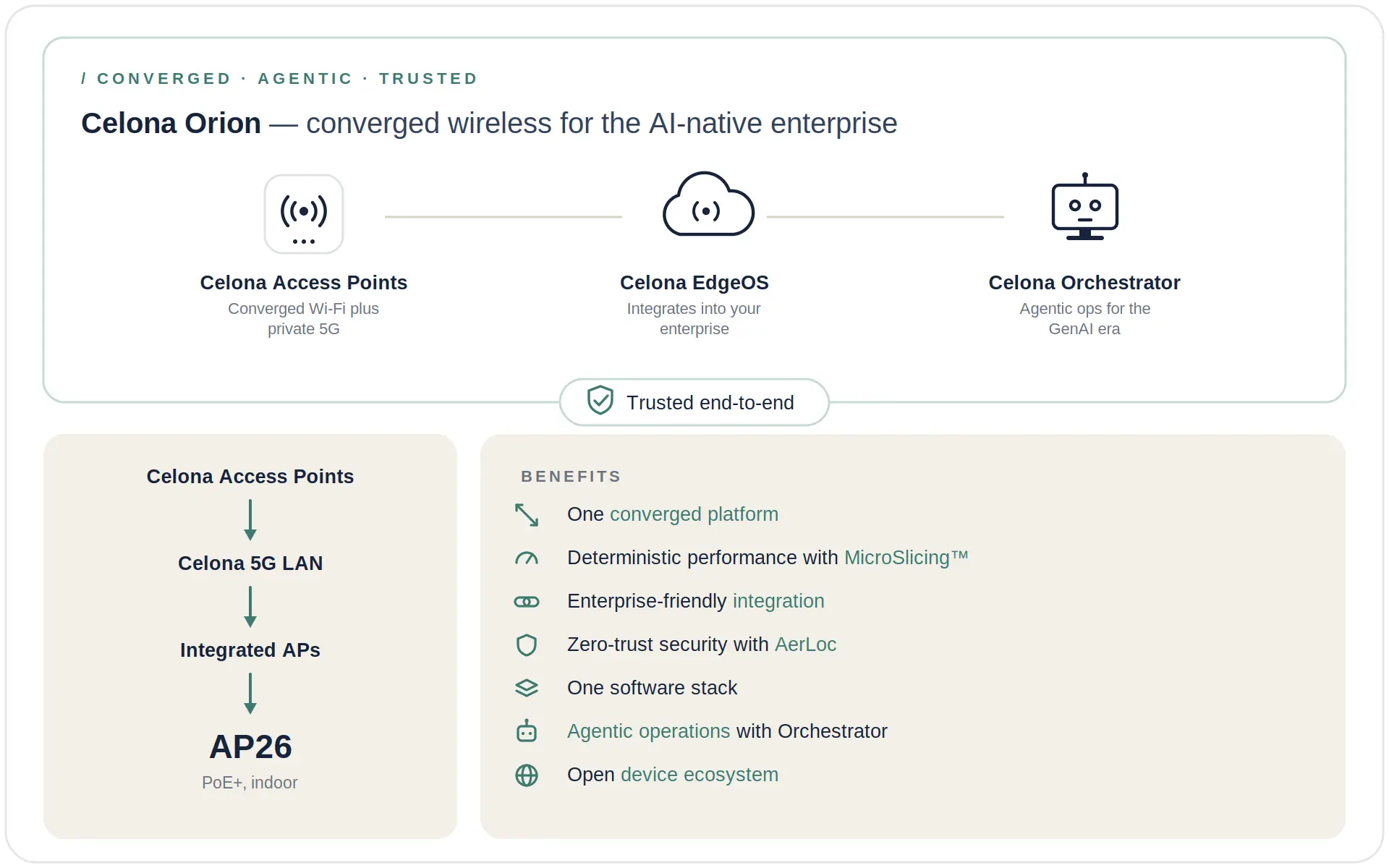

--- title: AP 26 data sheet date: 2026-07-17T14:24:00+10:00 author: Pepper Marketing canonical_url: "https://celona.io/resources/ap-26-data-sheet" section: Resources --- # Celona PoE+ 5G indoor access point AP 26 A plug-and-play Celona Orion 5G NR indoor access point for enterprise private wireless across the 3550-4200 MHz band (n48, n77, n78H), delivered as a single region-provisioned SKU on IEEE 802.3at PoE+. Wireless typeIntegrated Private 5G NR DeploymentIndoor (PoE+) Bandn48, n77, n78H (3.55-4.2 GHz) Hazardous environmentsNot rated IP ratingNot yet specified (draft) AerFlexNot supported ![AP26 78 Angled 01 Medium](https://celona.io/volumes/images/Content/Platform/Products/4G5G-Access-Point/AP26-78_Angled_01_Medium.png) 1. [ Home ](https://celona.io/) 2. [ Resources ](https://celona.io/resources) 3. Celona PoE+ 5G indoor access point AP 26 01 ## Overview The AP 26 is the PoE+ indoor access point in the Celona Orion platform - a fully integrated 5G NR access point designed for enterprise private wireless environments running on PoE+ infrastructure. Purpose-built for data center and similar environments, it is delivered as a single, region-provisioned SKU that automatically maps to n48, n77, or n78H based on site address. Powered by CelonaOS, it delivers deterministic, enterprise-grade performance for business-critical applications across the 3550-4200 MHz spectrum, and single-cable IEEE 802.3at PoE+ operation simplifies indoor deployment. 02 ## Key benefits An integrated private 5G NR access point powered by CelonaOS, purpose-built for data center and PoE+ indoor environments. Operating across the 3550-4200 MHz spectrum (n48, n77, n78H) as a single region-provisioned SKU, it runs entirely over IEEE 802.3at PoE+ — a single cable, no power injector — and mixes and matches with the existing AP 21, AP 22, AP 24, and AP 25 portfolio on the same site. Support for global private wireless spectrum Operates across 3550-4200 MHz (n48, n77, n78H) as a single unified hardware platform, automatically region-provisioned by site address with an activation-time override available. Built for data center and PoE+ environments Powered entirely over IEEE 802.3at PoE+ (<25.5 W) - no separate power injector required. Mix-and-match support with the existing AP21, AP22, AP24, and AP25 portfolio on the same site. Secure wireless communication Certificate-based mutual authentication secures the connection between AP and cloud, with data at rest and in transit protected by comprehensive encryption mechanisms. Deterministic performance for business-critical applications 32 concurrent users per AP with 2×2 MIMO, up to 256 QAM (DL) / 64 QAM (UL). Balanced, DL-heavy, and UL-heavy traffic profiles, with 20, 40, 60, and 100 MHz channel bandwidths. Enterprise-friendly management and operations Cloud-managed through Celona Orchestrator with automatic sub-band mapping and site-level visibility. Integrated PTP follower support provides precise timing synchronization, with a single-LED status indicator. Support for external antennas External antenna support is planned for AP 26, qualified against Celona antennas as deployments require (120° sector, 65° sector, and Omni). 03 ## Celona Orion platform Celona Orion is converged wireless for the AI-native enterprise — one platform spanning radio, core networking, and AI-powered management. It brings 5G performance, reliability, and deterministic QoS into enterprise and industrial environments, designed specifically for enterprise integration and AI-driven operations. ![Ap26 orion](https://celona.io/volumes/images/Resources/Datasheets/_1920x1200_fit_center-center_70_none_ffffff/31809/ap26-orion.webp) #### Celona SIM + AerConnect Device identity and intelligence #### Celona Access Points Wi-Fi + private 5G as one system #### Celona EdgeOS Integrates into your enterprise #### Celona Orchestrator AI Agentic ops for the GenAI era 04 ## Specifications High level Type 5G NR access point, Category A, single sector (3GPP Rel. 15 TDD) Model AP26-48|77|78H - unified SKU, region-provisioned by site address RF Specifications 2×2 MIMO UL/DL, up to 256 QAM (DL) / 64 QAM (UL), 30 kHz subcarrier spacing Power (Rx/Tx) 21 dBm/port (n48); 24 dBm/port (n77, n78H); 6 dBi antenna gain; up to 33 dBm max EIRP Channel Bandwidth 20, 40, 60, 100 MHz Latency Not yet specified (draft) Connected Devices 32 concurrent users per AP Dimensions (W×D×H) Not yet specified (draft) Weight Not yet specified (draft) Environmental Operating: −5°C to +45°C. Storage temperature and humidity not yet specified (draft) Power Interface Lightning Protection Not applicable (indoor) Surge Protection Not yet specified (draft) Installation Mounting brackets & screws included (mount method not yet specified) Power Consumption IEEE 802.3at PoE+ (<25.5 W); no power injector included MTBF Not yet specified (draft) Ports & interfaces Network Interfaces 1× RJ-45 Ethernet (1G / 2.5 GbE) Antenna Interfaces Built-in, 6 dBi max antenna gain. External antenna ports: 2× SMA (planned). GPS antenna port: 1× SMA Power Supply IEEE 802.3at PoE+ (<25.5 W); no power injector included Timing PTP follower support only LED Indicators Single LED - solid blue = radio active; blinking blue = initializing / connecting to cloud; off = powered down Compliance & frequency Certifications AP26 (n48, US): FCC - FCC ID 2AWNP-AP26-48-77. AP26 (n77, n78H): CE - for EU deployments Frequency Band AP26-48: 3550-3700 MHz; AP26-77: 3800-4200 MHz; AP26-78H: 3550-3800 MHz. All 20/40 MHz at GA (60/100 MHz planned) 05 ## What's in the box ![Placeholder image](https://celona.io/volumes/images/Placeholder-Images/_450x300_letterbox_center-center_80_none/18320/Placeholder_image.webp) AP 26 unit ![Placeholder image](https://celona.io/volumes/images/Placeholder-Images/_450x300_letterbox_center-center_80_none/18320/Placeholder_image.webp) “What’s in the box” card with QR code (installation guide) ![Placeholder image](https://celona.io/volumes/images/Placeholder-Images/_450x300_letterbox_center-center_80_none/18320/Placeholder_image.webp) Mounting brackets & screws 06 ## Ordering information Celona Indoor AP 26 is included in the per-AP Celona private mobile network subscription, which scales with the number of access points in the network. SKU Description CS-AP26-48-P5G-X-3 3-year indoor 5G private wireless service subscription for one AP26 indoor access point, including management, SIM provisioning, and mobile core services via Celona Edge software and Celona Orchestrator cloud service. Includes a 5G Category A AP26 indoor access point supporting n48 (3550-3700 MHz) with integrated antennas and optional external antenna support, Celona Express technical support, limited lifetime warranty, and 20 private 5G SIM cards. CS-AP26-48-P5G-X-5 5-year indoor 5G private wireless service subscription - same inclusions as the 3-year n48 (3550-3700 MHz) SKU. CS-AP26-77-P5G-X-3 3-year indoor 5G private wireless service subscription for one AP26 indoor access point - same services and inclusions, with a 5G AP26 supporting n77 (3800-4200 MHz), integrated + optional external antennas, Celona Express support, limited lifetime warranty, and 20 private 5G SIM cards. CS-AP26-77-P5G-X-5 5-year indoor 5G private wireless service subscription - same inclusions as the 3-year n77 (3800-4200 MHz) SKU. CS-AP26-78H-P5G-X-3 3-year indoor 5G private wireless service subscription for one AP26 indoor access point - same services and inclusions, with a 5G AP26 supporting n78H (3550-3800 MHz), integrated + optional external antennas, Celona Express support, limited lifetime warranty, and 20 private 5G SIM cards. CS-AP26-78H-P5G-X-5 5-year indoor 5G private wireless service subscription - same inclusions as the 3-year n78H (3550-3800 MHz) SKU. 07 ## Warranty CS-AP26-48-P5G-X-5 ## Planning a private 5G deployment? ### Talk to a specialist about coverage for your site [ Talk to an expert ](https://celona.io/contact-us)
