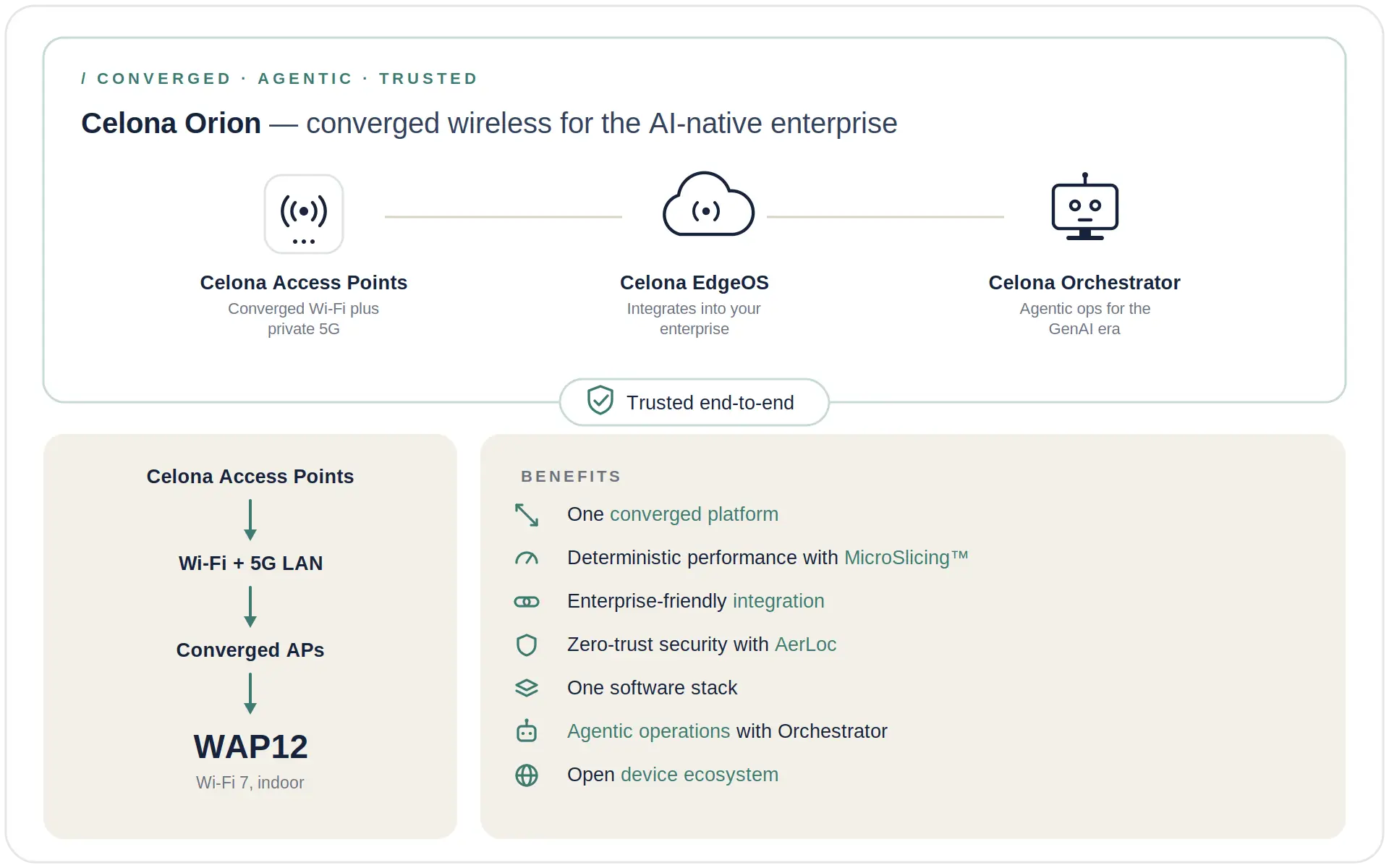

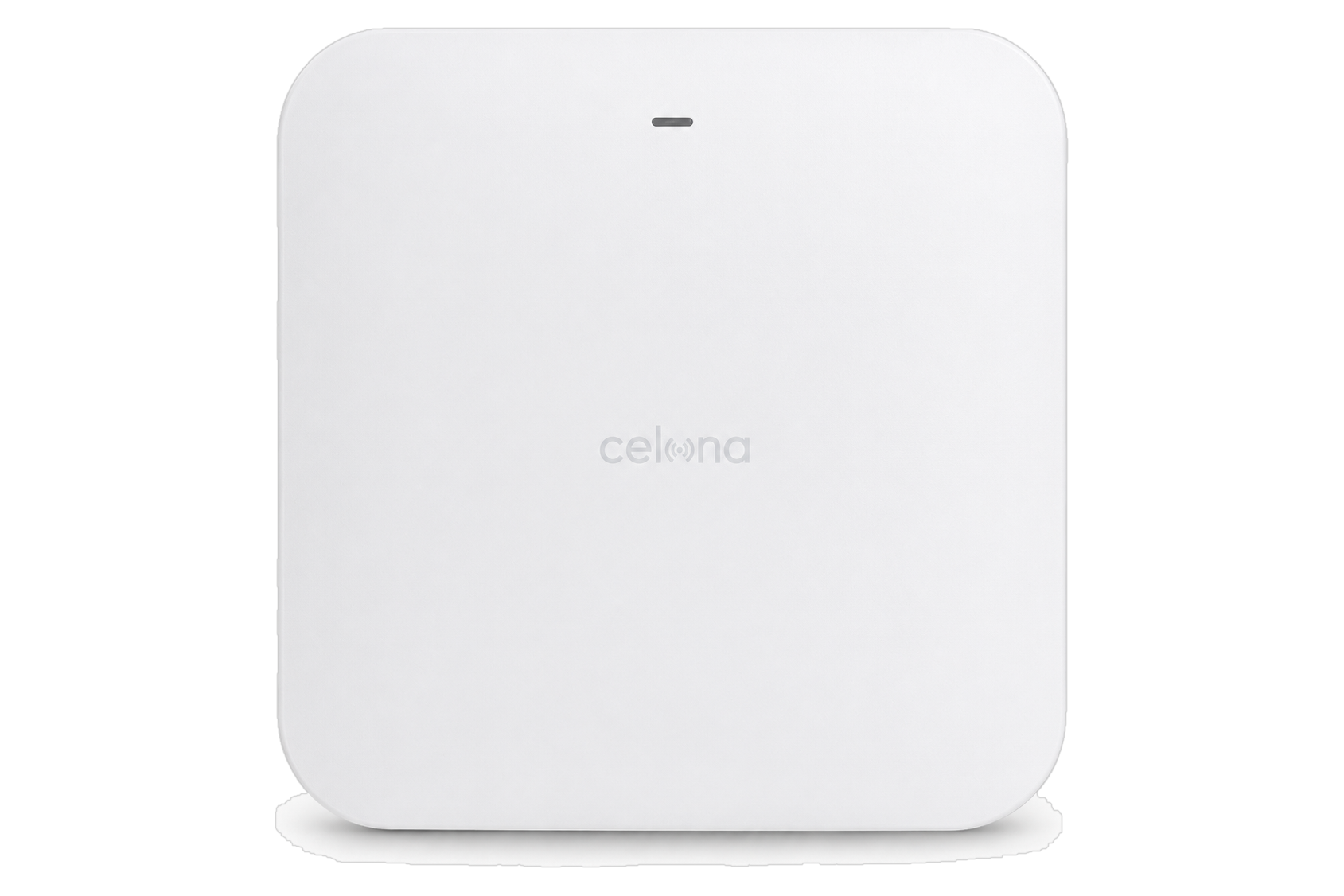

--- title: WAP12 data sheet date: 2026-07-17T14:24:00+10:00 author: Pepper Marketing canonical_url: "https://celona.io/resources/wap12-data-sheet" section: Resources --- # Celona Indoor Wi-Fi 7 access point WAP12 High-capacity enterprise Wi-Fi 7, unified with Private 5G through the Celona Orion platform. Wireless typeWi-Fi 7 (IEEE 802.11be), concurrent tri-band 2×2 DeploymentIndoor Bands2.4 / 5 / 6 GHz Max PHY rateUp to 9.34 Gbps aggregate IP ratingIP41 ManagementCelona Orchestrator (unified with Private 5G) ![Celona WAP12 access point render (transparent)](https://celona.io/volumes/images/Content/Platform/Products/Wifi-Access-Points/img_wap12_render_transparent.png) 1. [ Home ](https://celona.io/) 2. [ Resources ](https://celona.io/resources) 3. Celona Indoor Wi-Fi 7 access point WAP12 01 ## Overview The WAP12 is a compact indoor Wi-Fi 7 access point in the Celona Orion platform, built for enterprise and industrial environments. It delivers high-capacity connectivity for laptops, tablets, scanners, printers, engineering workstations, fixed OT devices, and docked robots - while Celona Private 5G addresses pervasive mobility and mission-critical operations. Managed through Celona Orchestrator, WAP12 extends Celona's converged wireless operating model with common site hierarchy, inventory, onboarding, security policy, telemetry, alarms, firmware lifecycle, and SSID-to-MicroSlice policy mapping - purpose-built Wi-Fi for the workloads where Wi-Fi performs best, unified with Private 5G under one enterprise wireless platform. 02 ## Key benefits An enterprise Wi-Fi 7 access point managed through Celona Orchestrator, bringing high-capacity tri-band connectivity and Private 5G together under one converged wireless platform. Concurrent 2.4, 5, and 6 GHz radios with 4K-QAM, OFDMA, MU-MIMO, Multi-Link Operation, and up to 320 MHz channels deliver capacity for modern enterprise and industrial devices. Enterprise Wi-Fi 7 platform Purpose-built indoor Wi-Fi 7 access point delivering concurrent tri-band operation with 2×2 MIMO across 2.4 GHz, 5 GHz and 6 GHz, providing high-capacity connectivity for modern enterprise and industrial environments. Advanced Wi-Fi 7 architecture Supports Multi-Link Operation (MLO), 320 MHz channels, 4K-QAM, OFDMA, MU-MIMO and preamble puncturing to maximize capacity, reduce latency and improve spectrum efficiency for next-generation enterprise applications. Unified enterprise wireless Managed through Celona Orchestrator, delivering unified visibility, policy, lifecycle management and application-aware Micro-Slicing across both Wi-Fi and Private 5G through a single converged enterprise wireless platform. Enterprise-Grade security Supports WPA2/WPA3 Enterprise, 802.1X, certificate-based authentication and secure cloud management to protect users, devices and enterprise applications. Flexible deployment Powered through IEEE 802.3at PoE+ with integrated antennas and flexible ceiling, wall and T-bar mounting, enabling rapid deployment across offices, manufacturing, warehousing, healthcare, education and distributed enterprise environments. 03 ## Celona Orion platform ![wap12-orion](https://celona.io/volumes/images/Resources/Datasheets/_1920x1200_fit_center-center_70_none_ffffff/32065/wap12-orion.webp) Celona Orion brings enterprise Wi-Fi and Private 5G together as one intelligent wireless fabric: use WAP12 for high-capacity indoor connectivity and Celona Private 5G for deterministic mobility, pervasive coverage, and mission-critical applications — each radio technology used where it fits best, with shared visibility, policy, and lifecycle workflows and no separate operational silos. 04 ## Specifications High level Product Type Indoor concurrent tri-band Wi-Fi 7 access point Wireless Standards IEEE 802.11a/b/g/n/ac/ax/be Radio Configuration 2×2:2 on 2.4 GHz; 2×2:2 on 5 GHz; 2×2:2 on 6 GHz Aggregate PHY Rate Up to 9.34 Gbps: 688 Mbps (2.4 GHz), 2.882 Gbps (5 GHz), 5.765 Gbps (6 GHz) Channel Bandwidth 2.4 GHz: 20/40 MHz; 5 GHz: 20/40/80/160 MHz; 6 GHz: 20/40/80/160/320 MHz Max Conducted TX Power Up to 28 dBm (2.4 GHz), 29 dBm (5 GHz), 25 dBm (6 GHz); regulatory limits apply Internal Antenna Gain 5 dBi (2.4 GHz); 6 dBi (5 GHz); 6 dBi (6 GHz) Max Power Consumption 23.58 W Dimensions (L×W×H) 179 × 195 × 35 mm / 7.0 × 7.7 × 1.4 in Weight 0.907 kg (2.0 lb) IP Rating IP41 (fanless enclosure) Operating Environment 0°C to 50°C; 5-95% non-condensing humidity Storage Environment −30°C to 70°C; 5-95% non-condensing humidity Mounting Ceiling, wall, wall-plate, or T-bar; mounting kit included Ports & interfaces Uplink Port 1× 100/1000/2500/5000BASE-T RJ-45 with IEEE 802.3at PoE+ Auxiliary LAN Port 1× 100/1000BASE-T RJ-45 (unused port may be covered for controlled installations) Optional Power Input USB-C PD 3.0, 15-20 V (power adapter not included) Indicators & Controls Tri-color status LED; restart / reset button; Kensington lock slot Compliance & Frequency Frequency Ranges 2.401-2.483 GHz; 5.170-5.835 GHz; 5.925-7.125 GHz (subject to local regulation) Regulatory Certifications Country-specific certifications and 6 GHz operation subject to final SKU and regulatory approval Wireless & mobility Multi-Link Operation (MLO) DFS support 802.11k/v/r fast roaming OFDMA, MU-MIMO, 4K-QAM, and BSS coloring Authentication & access WPA2/WPA3 Personal and Enterprise (incl. mixed/transition modes) Dynamic, private, and multiple PSK options (DPSK/PPSK/MPSK) 802.1X with EAP-TLS, PEAP, and TTLS RADIUS, NAC, and captive-portal integration MAC-based authentication Secure boot, signed firmware, and certificate-based mutual authentication Network services 802.1Q VLAN and dynamic VLAN assignment Spanning Tree Protocol DHCP, IPv6, proxy ARP, and LLDP Application-aware QoS integrated with Celona MicroSlices Operations & lifecycle Celona Orchestrator cloud management Unified inventory, alarms, client timeline, and site-health visibility Serial and bulk onboarding with site assignment Centralized firmware staging, upgrade, and rollback Certificate-based discovery; secure AP-to-cloud communication Remote diagnostics, packet capture, and spectrum visibility 05 ## What's in the box Image placement is illustrative – confirmed during review. Two items ship with each unit. A PoE injector or compatible PoE+ switch is sold separately unless included in the commercial bundle. ![Img wap12 render transparent](https://celona.io/volumes/images/Content/Platform/Products/Wifi-Access-Points/_450x300_letterbox_center-center_80_none/43732/img_wap12_render_transparent_2026-08-05-061602_mywu.webp) Celona WAP12 Wi-Fi 7 access point ![Img product AP24 79 Wall Ceiling Mount](https://celona.io/volumes/images/Products/Product-Accessories/_450x300_letterbox_center-center_80_none/43805/img_product_AP24-79_Wall-Ceiling-Mount.webp) Mounting kit (ceiling / wall / wall-plate / T-bar) 06 ## Ordering information WAP12 is managed through Celona Orchestrator and requires an active Celona subscription for Celona-managed operation. SKU / product name WAP12 / Celona WAP12 Indoor Wi-Fi 7 access point Base Hardware Concurrent tri-band 2×2 Wi-Fi 7 AP with internal antennas Power IEEE 802.3at PoE+; PoE injector or compatible switch sold separately unless included in the commercial bundle Included Accessories Ceiling / wall / T-bar mounting kit Management Celona Orchestrator private 5G subscription required for Celona-managed operation Support & Warranty Provided under the applicable Celona subscription and support terms Availability Beta: August (tentative); FCS: October (tentative) Regulatory Certifications Country-specific certifications and 6 GHz operation subject to final SKU and regulatory approval 07 ## Warranty Warranty and support for the Celona WAP12 are provided under the applicable Celona subscription and support terms, as part of an active Celona Private Mobile Network subscription. ## Planning a private 5G deployment? ### Talk to a specialist about coverage for your site [ Talk to an expert ](https://celona.io/contact-us)
