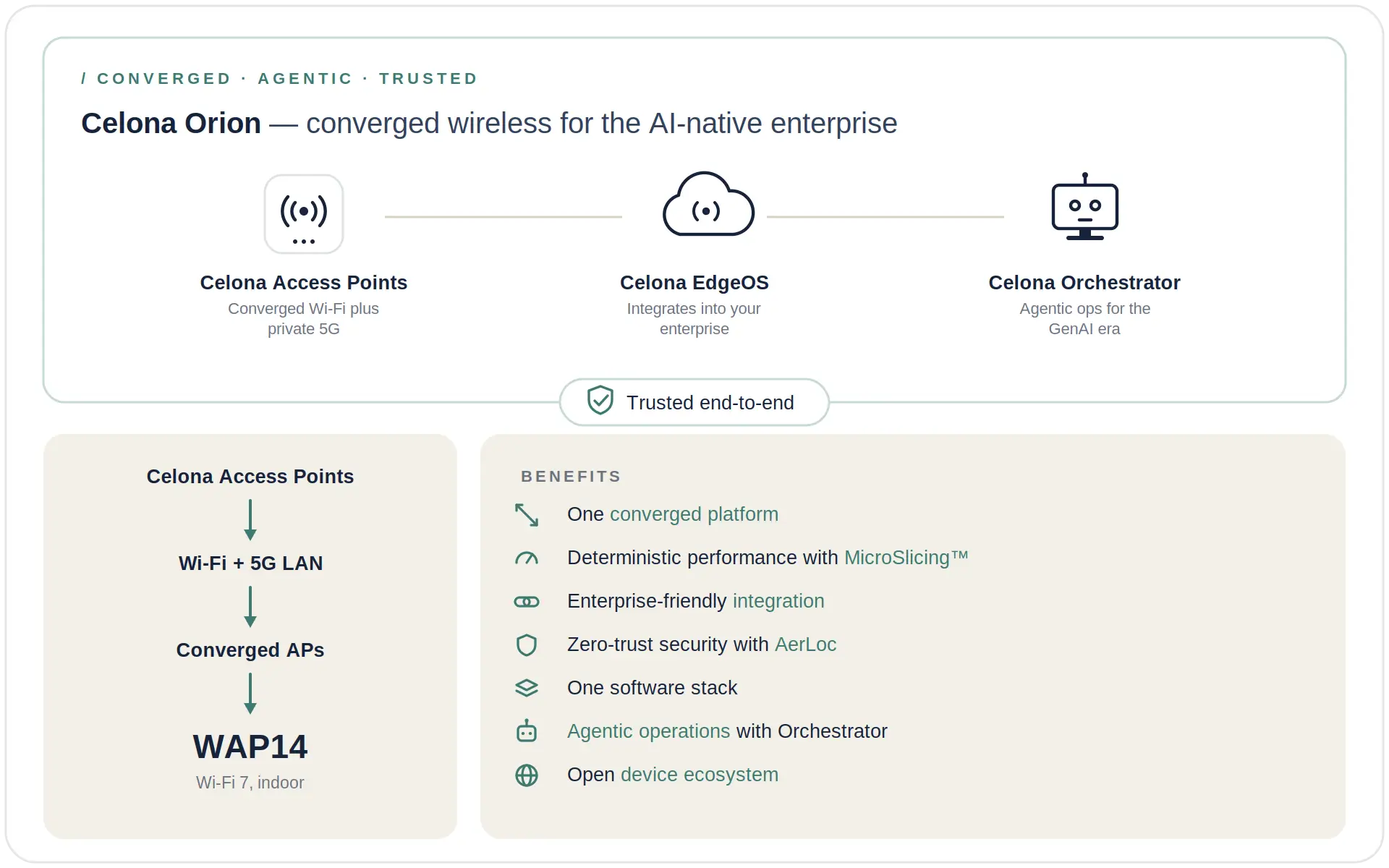

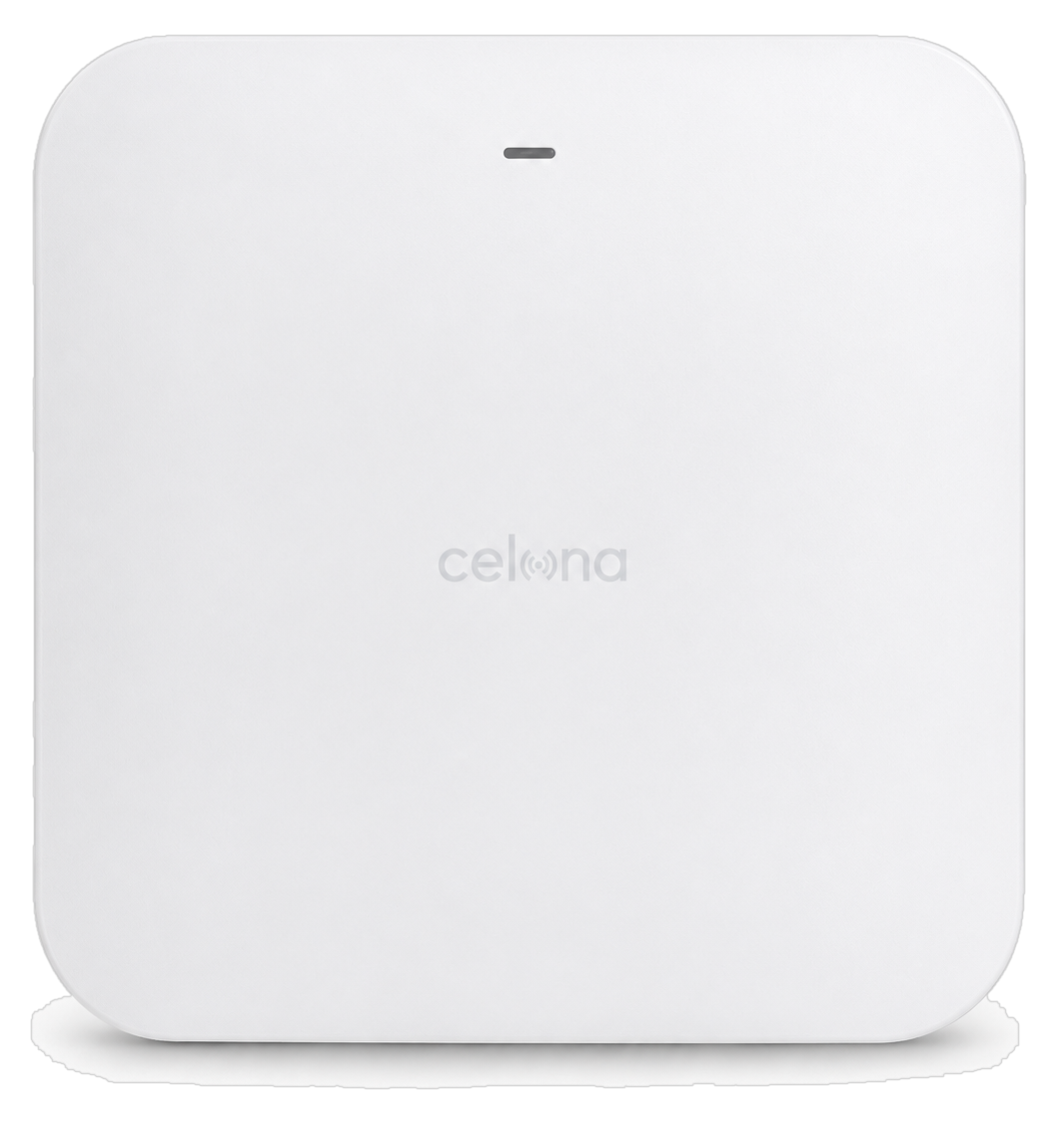

--- title: WAP14 data sheet date: 2026-07-17T14:24:00+10:00 author: Pepper Marketing canonical_url: "https://celona.io/resources/wap14-data-sheet" section: Resources --- # Celona high-density Wi-Fi 7 access point WAP14 High-density enterprise Wi-Fi 7, unified with Private 5G through the Celona Orion platform. Wireless typeWi-Fi 7 (IEEE 802.11be), concurrent tri-band, up to 4×4:4 DeploymentIndoor Bands2.4 / 5 / 6 GHz Max PHY rateUp to 18 Gbps aggregate IP ratingIP41 ManagementCelona Orchestrator (unified with Private 5G) ![Img wap12 render transparent](https://celona.io/volumes/images/Content/Platform/Products/Wifi-Access-Points/img_wap12_render_transparent_2026-08-05-061602_mywu.png) 1. [ Home ](https://celona.io/) 2. [ Resources ](https://celona.io/resources) 3. Celona high-density Wi-Fi 7 access point WAP14 01 ## Overview The WAP14 is a high-density indoor Wi-Fi 7 access point in the Celona Orion platform, built for enterprise and industrial environments with demanding capacity needs. Its 4×4:4 MU-MIMO radios on 5 and 6 GHz deliver added headroom for high-density laptops, tablets, scanners, printers, engineering workstations, fixed OT devices, and docked robots - while Celona Private 5G addresses pervasive mobility and mission-critical operations. Managed through Celona Orchestrator, WAP14 extends Celona's converged wireless operating model with common site hierarchy, inventory, onboarding, security policy, telemetry, alarms, client timelines, firmware lifecycle, and SSID-to-MicroSlice policy mapping - purpose-built high-density Wi-Fi for the workloads where Wi-Fi performs best, unified with Private 5G under one enterprise wireless platform. 02 ## Key benefits The WAP14 is a high-density enterprise Wi-Fi 7 access point managed through Celona Orchestrator, bringing high-capacity tri-band connectivity and Private 5G together under one converged wireless platform. Concurrent 2.4, 5, and 6 GHz radios - with 4×4:4 MU-MIMO on 5 and 6 GHz, 10 spatial streams, 4K-QAM, OFDMA, MLO, and up to 320 MHz channels - deliver up to 18 Gbps aggregate for demanding enterprise and industrial deployments. High-density Wi-Fi 7 performance Concurrent 2.4, 5, and 6 GHz radios with 4×4:4 MU-MIMO on 5 and 6 GHz, 4K-QAM, OFDMA, MLO, and up to 320 MHz channels deliver added capacity for high-density enterprise and industrial deployments - up to 18 Gbps aggregate PHY rate. One platform for Wi-Fi and Private 5G Celona Orchestrator provides a unified operational experience across sites, devices, inventory, alarms, lifecycle, policy, and troubleshooting - one platform spanning Wi-Fi and Private 5G. Application-aware Micro-Slicing Map Wi-Fi SSIDs and device policies into Celona MicroSlices to apply consistent business intent and application priority across the converged wireless environment. Flexible enterprise security Supports traditional Wi-Fi authentication - WPA2/WPA3, dynamic and multiple pre-shared keys (DPSK/MPSK), MAC-based authentication, and Wi-Fi Enhanced Open (OWE) - with RADIUS, NAC, and captive-portal integration. Simple cloud-first deployment Use existing Celona serial and bulk onboarding workflows, site assignment, certificate-based discovery, centralized configuration, and fleet-wide software lifecycle management. Industrial-ready indoor design Fanless IP41 enclosure, internal antennas, ceiling / wall / T-bar mounting, and multi-gig PoE power simplify deployment in manufacturing, warehousing, and distributed enterprise sites. 03 ## Celona Orion platform ![Wap14 orion](https://celona.io/volumes/images/Resources/Datasheets/_1920x1200_fit_center-center_70_none_ffffff/39494/wap14-orion.webp) Celona Orion brings enterprise Wi-Fi and Private 5G together as one intelligent wireless fabric: use WAP14 for high-density indoor connectivity and Celona Private 5G for deterministic mobility, pervasive coverage, and mission-critical applications - each radio technology used where it fits best, with shared visibility, policy, and lifecycle workflows and no separate operational silos. 04 ## Specifications High level Product Type Indoor concurrent tri-band Wi-Fi 7 access point Wireless Standards IEEE 802.11a/b/g/n/ac/ax/be Radio Configuration 2×2:2 on 2.4 GHz; 4×4:4 on 5 GHz; 4×4:4 on 6 GHz (10 spatial streams total, MU-MIMO) Aggregate PHY Rate Up to 18 Gbps: 689 Mbps (2.4 GHz), 5.765 Gbps (5 GHz), 11.53 Gbps (6 GHz) Channel Bandwidth 2.4 GHz: 20/40 MHz; 5 GHz: 20/40/80/160 MHz; 6 GHz: 20/40/80/160/320 MHz Aggregate Conducted TX Power Up to 24 dBm (2.4 GHz), 27 dBm (5 GHz), 27 dBm (6 GHz); aggregated across MIMO chains, excludes antenna gain; regulatory limits apply Internal Antenna Gain 5 dBi (2.4 GHz); 6 dBi (5 GHz); 6 dBi (6 GHz); 4 dBi BLE Max Power Consumption TBD (preliminary) Dimensions (L×W×H) Est. 225 × 230 × 40 mm (preliminary) Weight TBD (preliminary) IP Rating IP41 (fanless enclosure) Operating Environment 0°C to 50°C; 0-95% non-condensing humidity Storage Environment TBD (preliminary) Mounting Ceiling, wall, wall-plate, or T-bar; mounting kit included Integrated IoT Radios Bluetooth Low Energy and Zigbee Ports & interfaces Uplink Port 1× 100M/1000/2500/5000/10000BASE-T RJ-45, Auto-MDIX, with IEEE 802.3bt/at PoE Additional Interfaces 1× USB Type-C; 1× RJ-45 console port Optional Power Input DC input, 12V (power adapter not included) Indicators & Controls Tri-color status LED (power/cloud/uplink); restart/reset button; Kensington lock slot Compliance & frequency Frequency Ranges 2.401-2.483 GHz; 5.170-5.835 GHz; 5.925-7.125 GHz (subject to local regulation) Regulatory Certifications Country-specific certifications and 6 GHz operation subject to final SKU and regulatory approval Maximum transmit power, channels, 6 GHz availability, and certifications vary by country and regulatory domain. Fields marked TBD/Est. reflect the preliminary status of the underlying hardware platform and will be finalized ahead of general availability. Wi-Fi & mobility OFDMA and BSS coloring 802.11k/v/r fast roaming Open Mesh Target Wake Time (TWT) Client isolation and multicast-to-unicast conversion RSSI-threshold based client filtering Authentication & access WPA2/WPA3 Personal and Enterprise (incl. mixed/transition modes) Wi-Fi Enhanced Open (OWE) Dynamic and multiple pre-shared keys (DPSK/MPSK) MAC-based authentication Hotspot captive portal with Dynamic Authorization (DAE) RADIUS and NAC integration Network services 802.1Q VLAN and dynamic VLAN assignment ACL, NAT, and L3 firewall functions DHCP, IPv6, proxy ARP, and LLDP Spanning Tree Protocol DHCP snooping and ARP inspection Application-aware QoS integrated with Celona MicroSlices Operations & lifecycle Celona Orchestrator cloud management Serial and bulk onboarding with site assignment Certificate-based discovery; secure AP-to-cloud communication Unified inventory, alarms, client timeline, and site-health visibility Centralized firmware staging, upgrade, and rollback Remote diagnostics, packet capture, and spectrum visibility 05 ## What's in the box Image placement is illustrative – confirmed during review. 2 items ship with each unit. PoE injector or a compatible multi-gig PoE (802.3bt/at) switch is sold separately unless included in the commercial bundle. ![Img wap12 render transparent](https://celona.io/volumes/images/Content/Platform/Products/Wifi-Access-Points/_450x300_letterbox_center-center_80_none/43732/img_wap12_render_transparent_2026-08-05-061602_mywu.webp) Celona WAP14 Wi-Fi 7 access point ![Img product AP24 79 Wall Ceiling Mount](https://celona.io/volumes/images/Products/Product-Accessories/_450x300_letterbox_center-center_80_none/43805/img_product_AP24-79_Wall-Ceiling-Mount.webp) Mounting kit (ceiling / wall / wall-plate / T-bar) 06 ## Ordering information WAP14 is managed through Celona Orchestrator and requires an active Celona subscription for Celona-managed operation. SKU / product name C-WAP14 (tentative - subject to change) / Celona WAP14 indoor Wi-Fi 7 access point Base Hardware Concurrent tri-band Wi-Fi 7 AP - 2×2:2 (2.4 GHz) / 4×4:4 (5 GHz) / 4×4:4 (6 GHz) - with internal antennas, BLE and Zigbee Power IEEE 802.3bt/at PoE; PoE injector or compatible switch sold separately unless included in the commercial bundle Included Accessories Ceiling / wall / T-bar mounting kit Management Celona Orchestrator subscription required for Celona-managed operation Support & Warranty Provided under the applicable Celona subscription and support terms Availability / Status TBD (preliminary); product status: Beta (preliminary) Regulatory Certifications Country-specific certifications and 6 GHz operation subject to final SKU and regulatory approval Ordering information, subscriptions, certifications, commercial packaging, and availability are preliminary and subject to change prior to FCS. Underlying hardware specifications are sourced from a preliminary Edgecore EAP106 datasheet (EC DS\_260224) and are subject to change. 07 ## Warranty Warranty and support for the Celona WAP14 are provided under the applicable Celona subscription and support terms, as part of an active Celona subscription. ## Planning a private 5G deployment? ### Talk to a specialist about coverage for your site [ Talk to an expert ](https://celona.io/contact-us)
